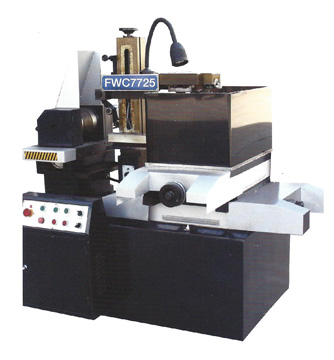

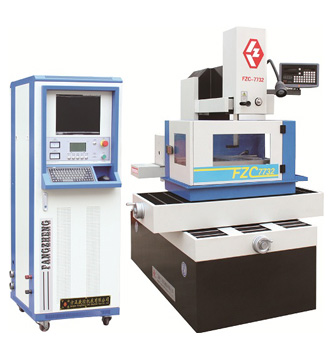

EDM - Wire Cut (Molybdenum)

Specification

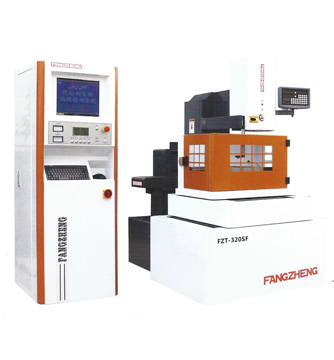

MODEL	FZT-320BJ/SF	FZC7740	FWC7745	FWC7780J
TABLE SIZE (mm)	500 x 700	600 x 820	830 x 570	1650 x 990
X, Y AXIS TRAVEL (mm)	320 x 400	400 x 500	550 x 450	1200 x 800
MAX. CUT THICKNESS (mm)	300	300	600	800
WIRE DIAMETER (mm)	0.18 - 0.20
MAX. TABLE LOAD (kg)	450	600	450	2000
NET WT. OF MACHINE BODY (kg)	1500	1700	1400	4500
